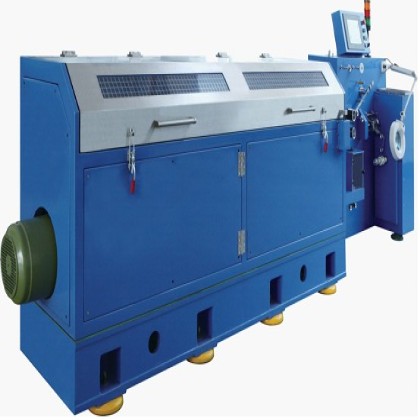

7 root very fine wire of copper alloy tube stranding machine
Tubular strander for stranded wire of 7 ultra fine alloy conductors
Machine types | Fine wire dia. | Max speed |
HTU-25 | Ф0.016-Ф0.05mm | Max.5000 r.p.m |
HTU-50 | Ф0.040-Ф0.12mm | Max.5000 r.p.m |
Machine types | HTU-25 | HTU-50 |
尺寸Size | Pay-off bobbin | Ф60mm | Ф80mm |
Take-up bobbin | Ф130-Ф200mm | Ф130-Ф200mm |
Max speed | Max.5000 r.p.m | Max.5000 r.p.m |
Fine wire dia. | Ф0.015-Ф0.05mm | Ф0.03-Ф0.12mm |
AWG Range | AWG46-AWG34 | AWG40-AWG27 |
Main motor | 5.5kW | 7.5kW |
Number of strands | 7 | 7 |
Dimensions(L×W×H) | 2971×690×1106(mm) | 2971×690×1106(mm) |
Uses | The device can strand fine wire of LCD,coaxial flat wire and copper(alloy)wire of medical equipments |
Wire tension | Break data Max:20g |
Lay direction | Left or Right |
Lay length | Set freely among Ф0.300-3.000mm |
Capstan pulley size | 200mm Capstan pulley Dia. Ф200mm |
Take-up tension and speed control | Dancer controls the constant tension from empty to full bobbin. |
Interlock | Safety cover |
Start/Stop | Softly start by inverter unit/Emergency stop by Electromagnetic brake |
Machine direction | Right hand |
Machine noise | ≤82db |
